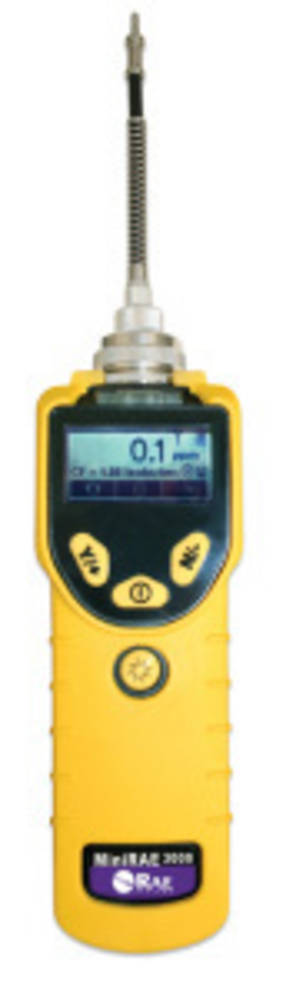

MiniRAE 3000

The MiniRAE 3000 is the most advanced handheld volatile organic compound (VOC) on the market. Its photoionization detector's (PID) extended range of 0 to 15,000ppm makes it an ideal instrument for applications from industrial hygiene to leak detection and HazMat.

The RF modem allows real-time data transmissions with a base controller located up to 500ft away from the MiniRAE 3000 (or 3.2Kms with optional RAELink3 portable modem)  A personal computer can be used as the base station for the MiniRAE 3000 system. ProRAE Remote software is capable of monitoring the input of up to 64 remotely located monitors, including MiniRAE 3000, ppbRAE, AreaRAE etc.

Key Features

• Proven PID technology - the patented sensor provides the following unique features

- 3-second response time

- Extended range up to 15,000ppm with improved linearity

- Humidity compensation with integral humidity and temperature sensors

• Real-time wireless data transmission with built-in RF modem or Bluetooth
• Designed for simple service - easy access to lamp and sensor in seconds without tools
• Big graphic display for easy overview of gas type. Correction Factor and Concentration
• Field-interchangeable battery pack replaced in seconds without tools
• Integrated flashlight for better view in dark conditions
• User friendly screens including dataplot chart view
• Integrated RAE Systems Correction Factors list for more than 200 compounds to measure more chemcials than any other PID
• Rugged housing withstands use in harsh environments

- IP67 waterproof design for easy cleaning and

decontamination in water

- Strong protective removable rubber boot

Additional Advantages

View real-time sensor data and alarm at HQ or command centre

Automatic lamp type recognition

Duty-cycling™ lamp and sensor auto-cleaning technology

Tough flexible inlet Flexi-Probe™

3 large keys operable with 3 layers of gloves

Strong built-in sample pump draws up to 30m horizontally or vertically

Loud, 95db flashing audible alarm

Bright red flashing visual alarm

Interchangeable drop-in lithium-ion and alkaline battery packs

Charging cradle doubles as an external battery charger

Compatible with AutoRAE™ calibration station

ProRAE Remote software similtaneously controls and displays readings for up to 64 remote detectors

License-free, ISM band RF transmission with communication range up to 500ft (3.2 kilometres with optional RAELink 3 modem)

Optional RAELink 3 modem provides GPS capability to track and display readings from remote detectors and provide up to 3.2 kilometres long-distance transmission

3-year 10.6eV lamp warranty
