System 57 & 5701 Control Cards

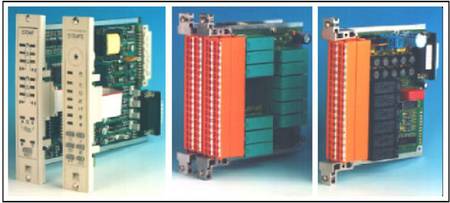

The 5701 single channel control cards are part of the System 57 control family and provides sensor control, signal processing and comprehensive alarming of any resulting gas detected. There are two versions, one is for the catalytic bridge type sensors while the other is for 4 to 20mA sensors or transmitters. The card input function is selected by a specific plug-in module, optional output modules are also available.


• Each card has a clear LCD display
• Provides sensor readings in both analogue and digital
• Peak reading & an alpha-numeric display provide intelligent status information
• Fully configurable
• Sensor preformance checking
• No potentiometer within the design
• Plug-in input and output options
• 3 levels of alarm
• TWA STEL LTEL

RACK ASSEMBLIES
System 57 racking units provide mounting options for the System 57 channel control cards and interface cards. Racks are available complete with a DC input card and an engineering card


• 3u high format
• Front and Rear Wiring Options
• Half and full 19" versions
• Up to 16 control cards giving 16 or 64 channels of gas detection per rack

Applications
Oil and Gas,
Petrochemical, Onshore, Offshore,
Industrial,
Water Treatment, Food, Chemical
Commercial,
Building Services, Car parks, Boiler Houses
