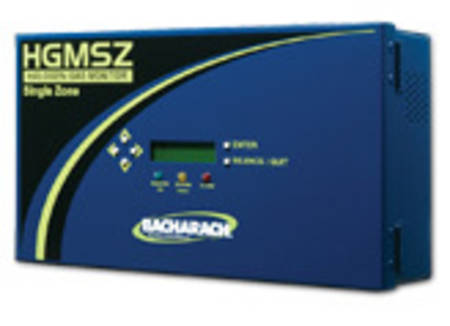

Single Zone Gas Leak Monitor

The Bacharach single zone family of fixed gas monitors is available for the monitoring  of refrigerants, halogen gases  (HGM-SZ) and ammonia (AGM-SZ).  The single zone series is designed around Bacharach's proprietary infrared sending technology to offer reliable, superior sensing performance Bacharach refrigerant monitors provide a unique combination of high sensitivity, large dynamic measurement ranges and speed of response. Utilizing infrared technology, these single and multi-zone products allow customers point-by-point customization, remote communications, centralized reporting and maintenance.

Primarily used to detect and monitor Halogen refrigerant gases, carbon dioxide and ammonia found in mechanical rooms, chillers,  supermarkets, and manufacturing facilities, these state-of-the-art products lead the industry in performance, cost of ownership and integration capabilities. Low-level detection limits respond to leaks when they are small, providing early warning for detection and repair, resulting in lower energy costs and refrigerant consumption.

Features & Benefits

• Proprietary infrared sensing technology virtually eliminates false alarms and extends sensor life.
• Capable of detecting and measuring any FCF, HFC, and HCFC refrigerant gas or ammonia
• Provides continuous, unattended monitoring from up to 150m away from measuring point
• Measurement range of 0-10,000ppm with sensitivity of 1ppm
• Datalogging feature enables 200 gas readings to be stored at user selectable time intervals
• No  calibration required - automatic calibration
• Low cost of ownership
• Easy to install
• LCD display for real-time readings
• Dedicated relays activate audible  or visual alarms
• 4-20mA output enable a compatible connection to standard building automation systems
