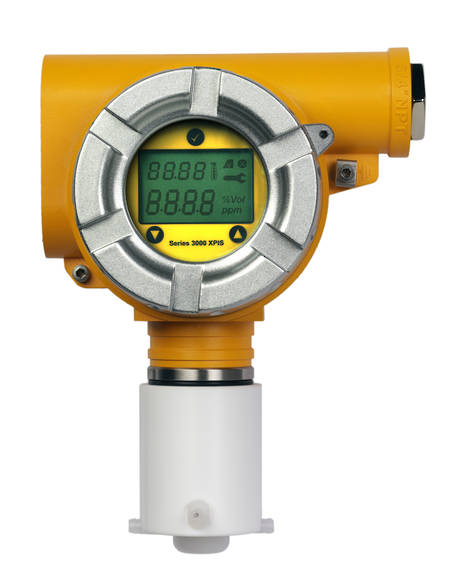

Series 3000 XPIS

This low powered gas detector operates on an industry standard 2-wire 4-20mA loop, making it ideal for both new and retrofit applications. Users can configure the detector without the need of a hotwork permit. Fault diagnostic software and programmable calibration due frequency simplifies maintenance procedures.

The intrinsically safe smart sensors are supplied pre-configured and can be "hot-swapped" without having to remove power to the detector, saving time and money during commissioning and routine servicing.  A remote sensor mounting kit is available that allows the sensor to be mounted up to 15m from the transmitter, making it ideal for operation in areas that are difficult to access.

Series 3000 XPIS is supplied with all necessary accessories for easy installation and can be wall mounted or mounted on a support pole using the universal bracket provided.  Electrical installation can be made  using either conduit or cable with suitable mechanical protection.  A 3/4" NPT entry and M20 adaptor are included as standard.  A weatherproof cap is also included for use in the harshest outdoor conditions.

Typical Applications :

• Exploration and drilling platform
• Production platforms
• Onshore oil and gas terminals
• Refineries and chemical plants
• Power plants
• Waste water facilities
